Hollow shaft high radiation type powder brake
PHB

Hollow shaft high radiation type powder brake

Type

PHB (1.2~20kgfm)

Classification

Nature cooling type

Usage
  • Buffer Start, Buffer Stop
  • Continuous Slide
  • Tension Control
  • Position and Stop
  • Overload Protection
  • Torque Restriction
  • Drive Attraction
  • Burden Simulating Device
  • Maintenance
  • High-frequency operation
  • Emergency Stop
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Applications
Winding and Packaging
  • Printing Machinery
  • Bag Making Machinery
  • Flexible Packaging Equipment
  • Textile Machinery
Wire and Cable Processing
  • Cable and Wire Machinery
  • Wire Coiling Machinery
  • Fiber Processing Machinery
  • Twisting Machinery
Heavy-Duty and Positioning
  • Tire Processing Machinery
  • Wood-Working Machinery
  • Metalworking Machinery
Precision Control
  • Precision torque simulation equipment
  • Factory Automation

Specification

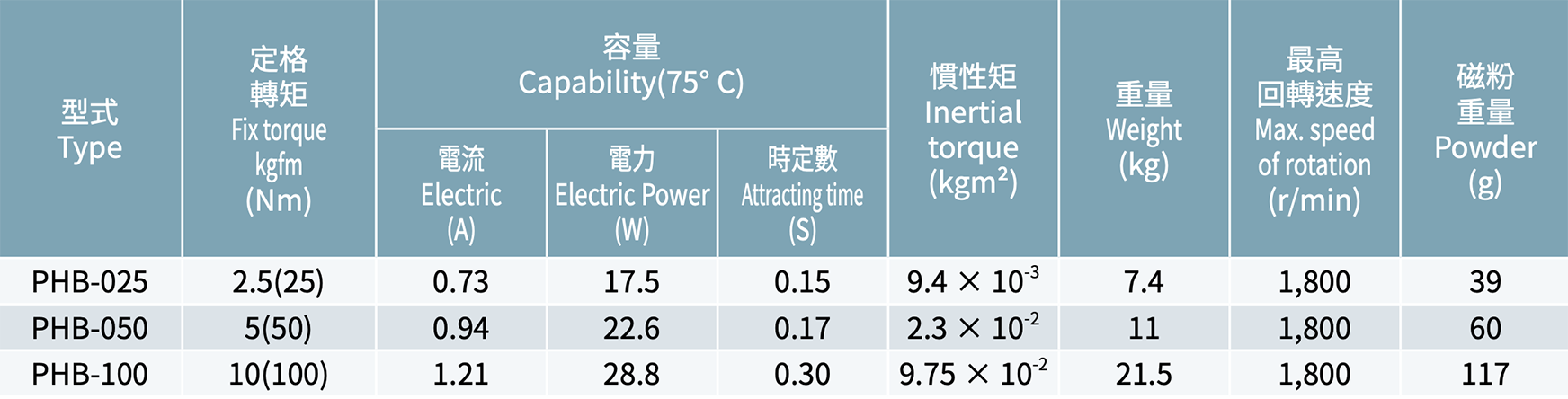

Rated Torque Capability (75°C) Inertial Torque (kgm²)
Model Rated Torque(kgfm) Rated Torque(Nm) Current(A) Power(W) Time Constant(S) Inertia (Input)(kgm²) Weight(kg) Max. Speed(r/min) Powder Weight(g)
PHB-025 2.5 25 1.1 26.4 0.06 9.4×10⁻³ 7.4 1800 39
PHB-050 5 50 1.4 33.6 0.09 2.3×10⁻² 11 1800 60
PHB-100 10 100 2.0 48 0.14 9.75×10⁻² 21.5 1800 117

Size of appearance (mm)

P Axis Body
Type L1mm L2mm L3mm L4mm L5mm L6mm L7mm D1mm D2mm D3mm D4(g7) D5mm Pathway Depthmm Shaft(H7) W(F8) T0+0.2mm
PHB-025 108 75 29 5 100 1.1 4 180 166 140 100 21 M10 19 20 5 22
PHB-050 120 88 27 5 115 1.3 5 220 172 150 110 31.4 M10 19 30 7 33
PHB-100 140 106 29 5 130 1.65 5 275 190 150 110 37 M10 22 35 10 38.5

We reserve the right to change specifications or dimensions without prior notice.
