Bag Making Machinery Applications
Stable Tension Control Solutions for Unwinding Bag Making Precision
Summary
Bag making machinery requires stable tension control throughout the entire unwinding process to ensure accurate feeding, sealing, punching, and cutting. In plastic bag lines, pouch converting systems, and flexible packaging machines, changes in roll diameter, line speed, and film properties can quickly cause feeding instability, seal misalignment, cut-length variation, or wrinkling.
A magnetic powder brake combined with a tension controller and sensor feedback helps maintain smooth and repeatable braking torque on the unwinding side, even during continuous operation and speed changes.
This closed-loop approach is especially effective for roll-to-roll bag making equipment where film tracking, registration accuracy, and process stability directly affect bag quality and yield. For OEM designers and engineers, stable tension control is a core requirement for reducing scrap, improving repeatability, and achieving reliable machine performance across different film materials and operating conditions.
Applicable Equipment
Plastic bag making machines, bottom-seal bag machines, side-seal bag machines, wicket bag lines, pouch making machines, zip bag converting machines, and other flexible packaging and bag converting equipment.
Applicable Materials
PE film, PP film, OPP film, CPP film, laminated packaging film, printed film, biodegradable film, multilayer flexible packaging materials, and other web materials used in unwinding bag making processes.
Why Tension Control Is Critical in Bag Making Machinery
In bag making systems, film must be fed with consistent tension to keep registration, seal position, and cut length stable. Because roll diameter continuously decreases on the unwinding side, braking torque must be adjusted in real time to maintain smooth material transport and repeatable converting accuracy.
Maintain Film Feeding Accuracy
Stabilize Seal and Cut Position
Prevent Wrinkles and Film Slip
Improve Repeatability at Speed Changes
Common Tension-Related Problems in Bag Making Lines
Bag making machinery operates with thin flexible film under continuous unwinding feeding conditions, so even small tension variation can affect sealing accuracy, cutting consistency, and final bag quality.
Unstable Film Feeding
If unwinding tension fluctuates, film transport becomes inconsistent and causes feeding error, tracking instability, and poor synchronization with sealing or punching stations.
Seal Position Deviation
When web tension changes during production, the material length between process stations shifts slightly, which can result in incorrect sealing position or misaligned registration marks.
Cut Length Inconsistency
Poor tension compensation during roll diameter change can alter the effective film feed length, causing variation in bag length and reduced dimensional accuracy.
Wrinkles and Film Stretching
Excessive or uneven tension may stretch soft film, distort printed graphics, or create wrinkles that interfere with sealing quality and product appearance.
Material Slip During Acceleration or Deceleration
When line speed changes rapidly, insufficient tension response can allow the web to slip or surge, leading to unstable operation and higher scrap rate.
Integrated Tension Control Solutions for Bag Making Machinery
A typical bag making solution combines a magnetic powder brake, tension controller, tension sensor, and properly arranged guide rollers to form a responsive closed-loop tension control system. This architecture keeps unwinding tension stable as roll diameter and line speed change, helping the machine maintain smooth feeding and accurate downstream converting performance.
Ideal for
- Plastic bag making lines
- Pouch converting systems
- Printed film bag production
- Flexible packaging machinery
- Other unwinding converting applications that require accurate feeding, sealing, and cutting
Core Value
- Stable unwinding tension
- Smoother film transport
- Better seal and cut consistency
- Reduced material waste
- Improved overall bag quality in unwinding production

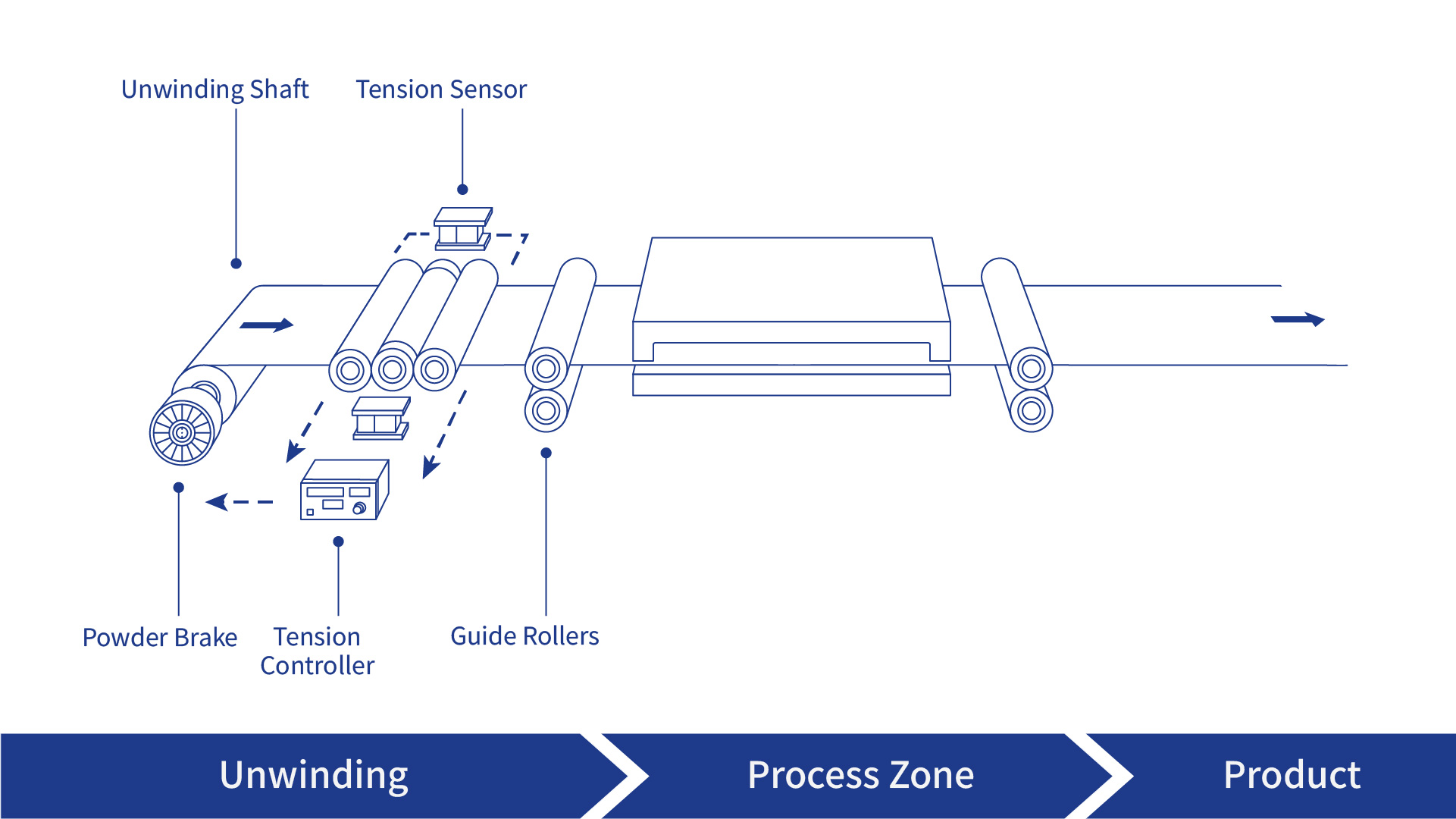

Closed-Loop Tension Control Architecture for Bag Making Machinery
System Components
Magnetic powder brake & clutch
Torque generation
Tension controller
Signal processing and compensation
Tension sensor
Feedback measurement
Unwinding shaft and guide rollers
Web transport and path stabilization
Control Logic
Measured tension is continuously monitored and compared with the target setpoint.
The controller calculates deviation between actual tension and desired value in real time.
Compensation is applied based on roll diameter variation.
Additional compensation is applied for line speed changes and process dynamics.
Output current is adjusted accordingly to regulate braking torque.
A closed-loop control system is formed to maintain stable and consistent tension.
Why Magnetic Powder Brakes Are Suitable for Bag Making Machinery
Bag making machinery requires smooth torque output, fast response, and stable performance over a wide range of operating conditions. Magnetic powder brake systems are well suited for this application because they support continuous unwinding control without abrupt braking behavior, helping maintain accurate film transport in unwinding production.
Smooth and Stable Torque Output
A magnetic powder brake provides repeatable braking torque, which helps maintain stable web tension and consistent film feeding throughout the production cycle.
Accurate Tension Control During Roll Diameter Change
Because braking torque can be adjusted continuously, the system can compensate for decreasing unwind diameter and keep actual tension close to the target value.
Reliable Continuous Slip Operation
Bag making lines often require the unwind brake to operate continuously. Powder brake designs with proper heat dissipation are suitable for long-duration slip and stable production.
Better Bag Quality and Lower Scrap
More stable tension improves seal alignment, cut-length consistency, and film tracking, reducing production waste and improving finished bag quality.
Typical Installation Points
Unwinding station
Intermediate process zones
Single or multi-zone configurations are selected based on machine speed and precision requirements.
Recommended Product Configuration
Final selection depends on torque demand, line speed, and material characteristics.
Engineering FAQ
Below are common engineering questions related to tension control, unwinding film handling, and magnetic powder brake selection for bag making machinery.
Stable tension control keeps film feeding consistent, which directly affects seal position, cut length accuracy, and final bag quality.
A magnetic powder brake provides smooth, adjustable braking torque and performs well in continuous slip operation, making it suitable for stable unwinding control.
Typical issues include feeding error, wrinkles, seal misalignment, cut-length variation, film stretching, and increased scrap during production.
The controller adjusts brake current based on feedback and diameter-related compensation logic so that braking torque changes as the unwind roll becomes smaller.
Related Insights
Explore additional insights on manufacturing excellence and component design
Technical Summary
Bag making machinery depends on stable tension control to maintain accurate film feeding, repeatable sealing, and consistent cutting performance in unwinding production.
A magnetic powder brake combined with a controller and sensor feedback provides an effective closed-loop solution for compensating roll diameter change, speed variation, and material sensitivity.
This system architecture helps reduce wrinkles, feeding instability, seal deviation, and scrap while improving machine reliability and finished bag quality.
For engineers and OEM designers, it is a practical and proven approach to high-performance bag making equipment.
