Stable Tension Control Solutions for Roll-to-Roll Coating and Laminating Precision
Summary
Coating and laminating machines require precise and stable tension control throughout the entire roll-to-roll process to maintain coating uniformity, lamination alignment, and web stability. In film coating lines, adhesive laminators, and multi-layer converting systems, roll diameter variation, speed changes, thermal effects, and material sensitivity can quickly lead to wrinkles, stretching, coating thickness deviation, air entrapment, or bonding defects.
A magnetic powder brake combined with a tension controller and sensor feedback helps maintain smooth and repeatable braking torque on the unwinding side, allowing the system to respond effectively to continuous process changes.
This closed-loop approach is especially important in roll-to-roll coating and laminating applications, where even small tension variation can affect surface quality, adhesive performance, and finished roll consistency. For engineers and OEM designers, stable tension control is a fundamental requirement for reducing defects, improving process repeatability, and ensuring reliable machine performance across a wide range of web materials and operating conditions.
Applicable Equipment
Coating machines, adhesive laminating machines, dry laminators, solvent-free laminators, extrusion laminating lines, multi-layer film laminating systems, and other roll-to-roll coating and converting equipment.
Applicable Materials
PET film, BOPP film, CPP film, release film, aluminum foil, paper, nonwoven materials, flexible packaging laminates, coated web materials, and other roll-to-roll substrates used in coating and laminating processes.
Why Tension Control Is Critical in Coating & Laminating Machines
In coating and laminating systems, web tension must remain stable from unwinding through coating, drying, lamination, and rewinding. Because roll diameter, thermal conditions, and material behavior change during operation, braking torque and web transport stability must be controlled in real time to maintain process quality.
Maintain Coating Uniformity
Stabilize Lamination Alignment
Prevent Wrinkles and Web Distortion
Improve Finished Roll Consistency
Common Tension-Related Problems in Coating and Laminating Lines
Coating and laminating machines process sensitive web materials under continuous roll-to-roll conditions, so tension instability can directly affect coating thickness, lamination quality, web flatness, and final roll structure.
Wrinkles During Coating or Lamination
If web tension is too low, uneven, or unstable, the material can wrinkle before the coating head, at the laminating nip, or along the drying path, reducing product quality and process stability.
Coating Thickness Variation
Unstable web transport caused by poor tension control can disturb coating application and create uneven coating weight, streaking, or surface defects.
Lamination Misalignment or Air Entrapment
When tension fluctuates between combined layers, web alignment can shift and create bonding defects, trapped air, or inconsistent lamination structure.
Material Stretching or Thermal Distortion
Excessive tension, especially under heated process conditions, can stretch thin films or distort sensitive substrates, affecting dimensional stability and finished product accuracy.
Tension Drift During Roll Diameter Change
As the unwind roll becomes smaller, braking torque must decrease accordingly. Without compensation, actual web tension rises or falls and causes unstable coating and laminating performance.
Integrated Tension Control Solutions for Coating & Laminating Machines
A typical coating and laminating solution combines a magnetic powder brake, magnetic powder clutch, tension controller, tension sensor, and properly designed guide roller arrangement to create a responsive closed-loop tension control system. This architecture keeps unwinding tension stable as roll diameter and line speed change, helping the machine maintain smooth web transport, stable coating conditions, and consistent lamination quality.
Ideal for
- Film coating lines
- Adhesive laminating machines
- Dry and solvent-free laminators
- Extrusion laminating systems
- Other roll-to-roll applications that require stable web handling and consistent layer quality
Core Value
- Stable unwinding tension
- Improved coating uniformity
- Better lamination alignment
- Fewer surface defects
- Reduced waste
- Higher roll-to-roll process reliability

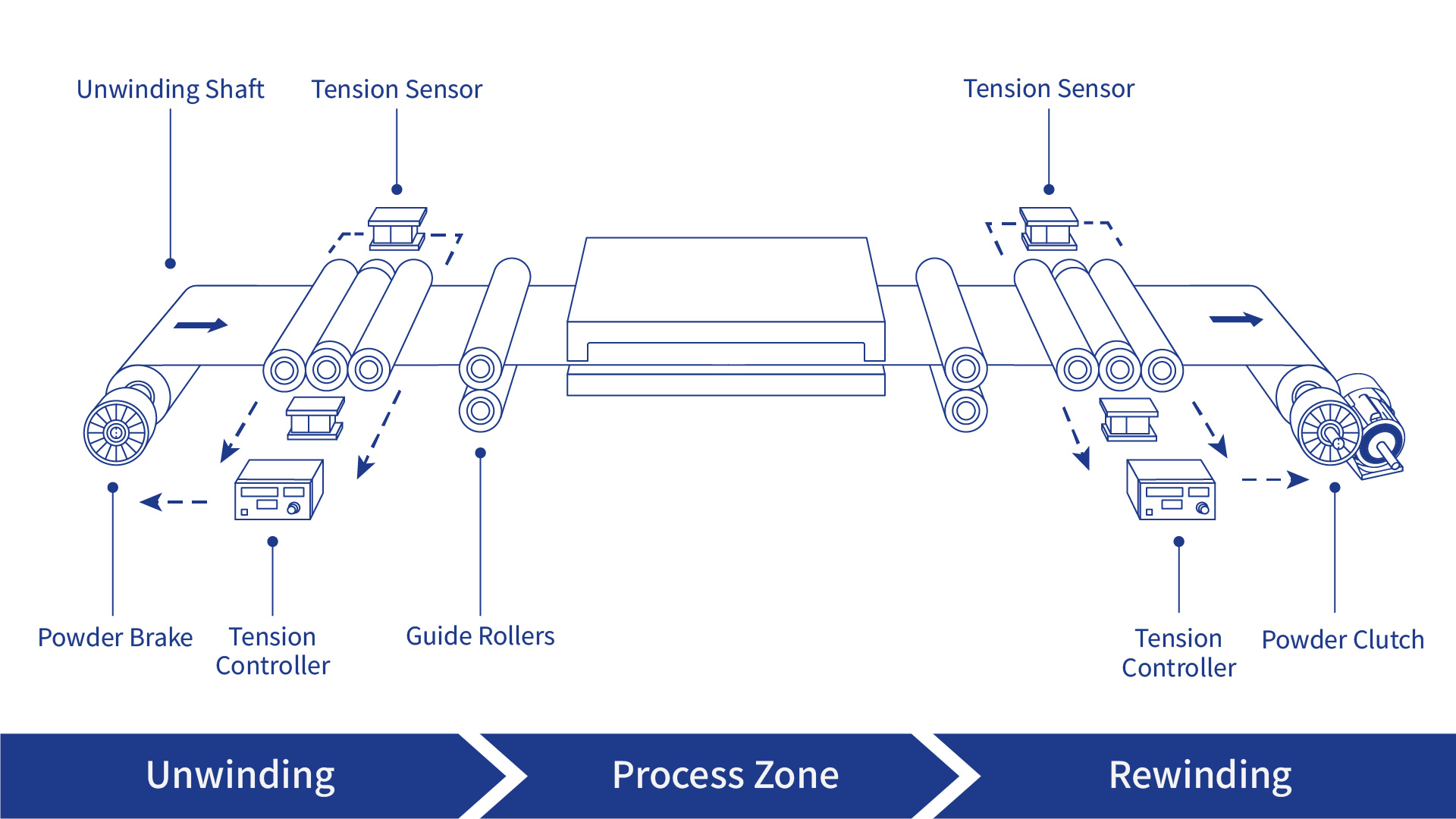

Closed-Loop Tension Control Architecture for Coating & Laminating Machines
System Components
Magnetic powder brake & clutch
Torque generation
Tension controller
Signal processing and compensation
Tension sensor
Feedback measurement
Unwinding shaft and guide rollers
Web transport and path stabilization
Control Logic
Measured tension is continuously monitored and compared with the target setpoint.
The controller calculates deviation between actual tension and desired value in real time.
Compensation is applied based on roll diameter variation.
Additional compensation is applied for line speed changes and process dynamics.
Output current is adjusted accordingly to regulate braking torque.
A closed-loop control system is formed to maintain stable and consistent tension.
Why Magnetic Powder Brakes Are Suitable for Coating & Laminating Machines
Coating and laminating machines require smooth torque output, fast response, and stable web handling across different materials and process conditions.
Magnetic powder brake systems are well suited to these requirements because they support continuous unwinding control without abrupt braking behavior, helping maintain precise tension conditions in roll-to-roll converting lines.
Smooth and Repeatable Braking Torque
A magnetic powder brake provides stable and controllable torque output, helping the machine maintain consistent web tension and smoother transport through coating and laminating sections.
Accurate Compensation for Roll Diameter Change
Because braking torque can be adjusted continuously, the system can compensate for shrinking unwind diameter and keep actual tension closer to the target value.
Reliable Continuous Slip Operation
Coating and laminating lines often require the unwind brake to operate continuously. Powder brake designs with appropriate heat dissipation are suitable for long-duration slip and stable production.
Improved Surface Quality and Lamination Stability
More stable tension improves coating uniformity, reduces wrinkles and web distortion, and supports better layer alignment and finished roll structure.
Typical Installation Points
Unwinding station
Intermediate process zones
Rewinding station
Single or multi-zone configurations are selected based on machine speed and precision requirements.
Recommended Product Configuration
Final selection depends on torque demand, line speed, and material characteristics.
Engineering FAQ
Below are common engineering questions related to tension control, roll-to-roll web handling, and magnetic powder brake selection for coating and laminating machines.
Stable tension control keeps the web flat and properly transported, which directly affects coating uniformity, laminating alignment, and final product consistency.
A magnetic powder brake provides smooth, adjustable braking torque and performs well in continuous slip operation, making it suitable for stable unwinding tension control.
Typical issues include wrinkles, coating thickness variation, alignment error, air entrapment, substrate stretching, and unstable finished roll structure.
The controller adjusts brake current based on feedback and compensation logic so that braking torque changes as the unwind roll diameter decreases.
Related Insights
Explore additional insights on manufacturing excellence and component design
Technical Summary
Coating and laminating machines depend on stable tension control to maintain accurate web transport, uniform coating conditions, and consistent lamination quality in roll-to-roll production.
A magnetic powder brake combined with a controller and sensor feedback provides an effective closed-loop solution for compensating roll diameter change, line speed variation, thermal effects, and material sensitivity.
This system architecture helps reduce wrinkles, coating instability, alignment error, and poor rewind structure while improving converting precision and machine reliability.
For engineers and OEM designers, it is a practical and proven approach to high-performance coating and laminating equipment.
