Stable Tension Control Solutions for Precision Coating, Laminating, and Web Converting Lines
Solution Overview
Coating and laminating machines require more than stable transport between rollers. To achieve coating uniformity, lamination accuracy, and consistent finished roll quality, the entire web handling process must maintain stable tension from unwinding through process zones to rewinding.
HELISTAR coating and laminating solutions are designed as a coordinated tension control architecture that combines magnetic powder brakes, tension controllers, sensing devices, and optimized mechanical layout. This system-level approach helps compensate for roll diameter variation, line speed changes, substrate sensitivity, and multi-layer process dynamics while maintaining smooth braking torque and consistent web behavior.
For OEM machine builders, this supports a stronger and more reliable machine platform. For factory managers, it reduces coating defects, minimizes wrinkles and registration drift, and improves overall line stability across films, foils, papers, and laminated structures.
The value proposition is clear: more stable coating and laminating performance, lower material waste, and better production repeatability in demanding converting applications.
Ideal for
- Solvent-based and water-based coating lines
- Dry lamination and extrusion lamination machines
- Film, foil, and paper laminating systems
- Multi-layer web converting equipment
- Precision coating and surface treatment sections requiring stable web handling
Core value
- More uniform coating application across the full web width
- Better laminate layer alignment and bonding consistency
- Improved web stability across coating, drying, and rewinding zones
- Lower material waste from defects and process transitions
- Reduced dependence on operator setup expertise to maintain consistent process quality
- More repeatable production results across different substrates, coating formulations, and shifts
Key Tension Control Challenges in Coating & Laminating Machines
Coating and laminating lines must maintain stable web tension while materials pass through unwinding, coating heads, laminating nips, drying zones, and rewinding sections. A reliable solution must manage these variables as one integrated control system to protect coating quality, laminate stability, and line efficiency.
Coating Thickness Instability
If web tension varies in the coating section, the substrate may move unevenly or deform under process load. The solution must stabilize web behavior so coating application remains more uniform and repeatable.
Wrinkling and Web Distortion
Films, foils, papers, and laminated substrates are highly sensitive to under-tension, over-tension, and torque fluctuation. The control system must minimize web movement that can lead to wrinkles, stretching, and process defects.
Lamination Misalignment and Poor Bonding Consistency
When multiple webs are combined under unstable tension conditions, layer alignment can shift and bonding quality can become inconsistent. The solution must maintain stable tension through the laminating zone to support better layer control.
Unstable Unwinding During Diameter Change
As the parent roll becomes smaller, unwinding torque demand changes continuously. Without compensation, tension fluctuation at the front end can affect the full downstream coating or laminating process.
Process Quality Dependent on Operator Setup Expertise
Coating and laminating applications involve sensitive substrates and precise process conditions where maintaining coating uniformity and laminate alignment often depends on individual operator knowledge and manual adjustment. When switching between different substrates, coating formulations, or laminate structures, quality outcomes can vary significantly depending on who sets up the line. This raises quality risk during personnel changes, increases the cost of training operators for complex setups, and makes it harder to build consistent quality standards across different product lines and production conditions.
Why System-Level Design Matters in Coating & Laminating Tension Control
Stable coating and laminating quality cannot be achieved by controlling braking torque alone. Uniform coating thickness, lamination accuracy, and substrate stability depend on coordinated interaction between braking torque, tension sensing, controller response, thermal process conditions, and web handling mechanics.
A system-level design approach helps maintain stable web tension throughout the entire converting process, improving coating consistency and finished product quality.
Component Matching
The magnetic powder brake, clutch, tension controller, tension sensor, and web transport system should be matched to substrate characteristics, coating process, line speed, and torque requirements. Proper integration helps maintain stable coating conditions and lamination accuracy under varying production demands.
Dynamic Response
The system must respond smoothly to roll diameter changes, line speed variation, thermal expansion, and substrate behavior without creating tension disturbances. Stable dynamic response helps minimize wrinkles, coating defects, misalignment, and air entrapment during continuous production.
Long-Term Production Stability
Predictable system performance supports consistent coating thickness, lamination quality, and finished roll structure across different materials and operating conditions. Reduced manual adjustment improves repeatability, production efficiency, and overall process reliability.

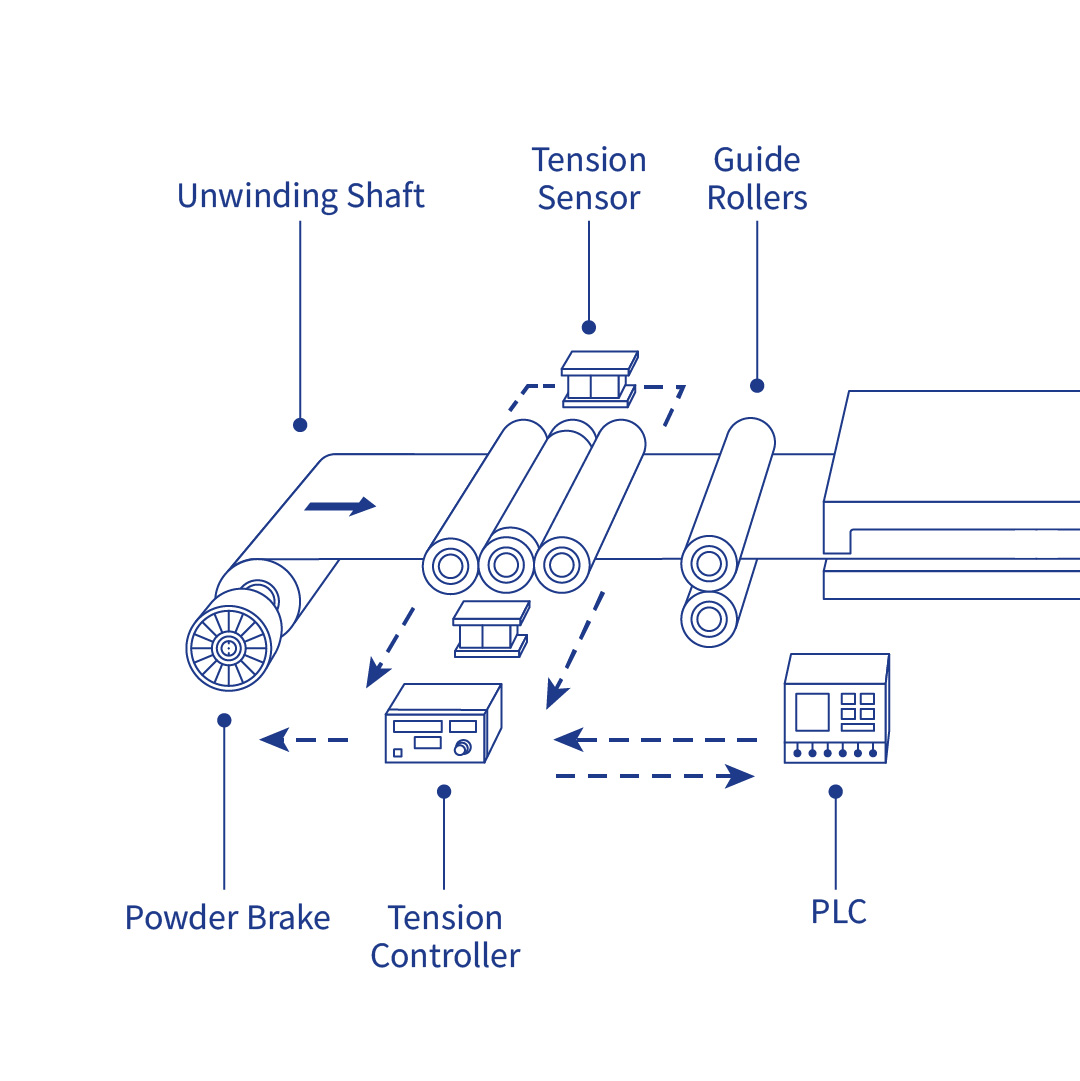

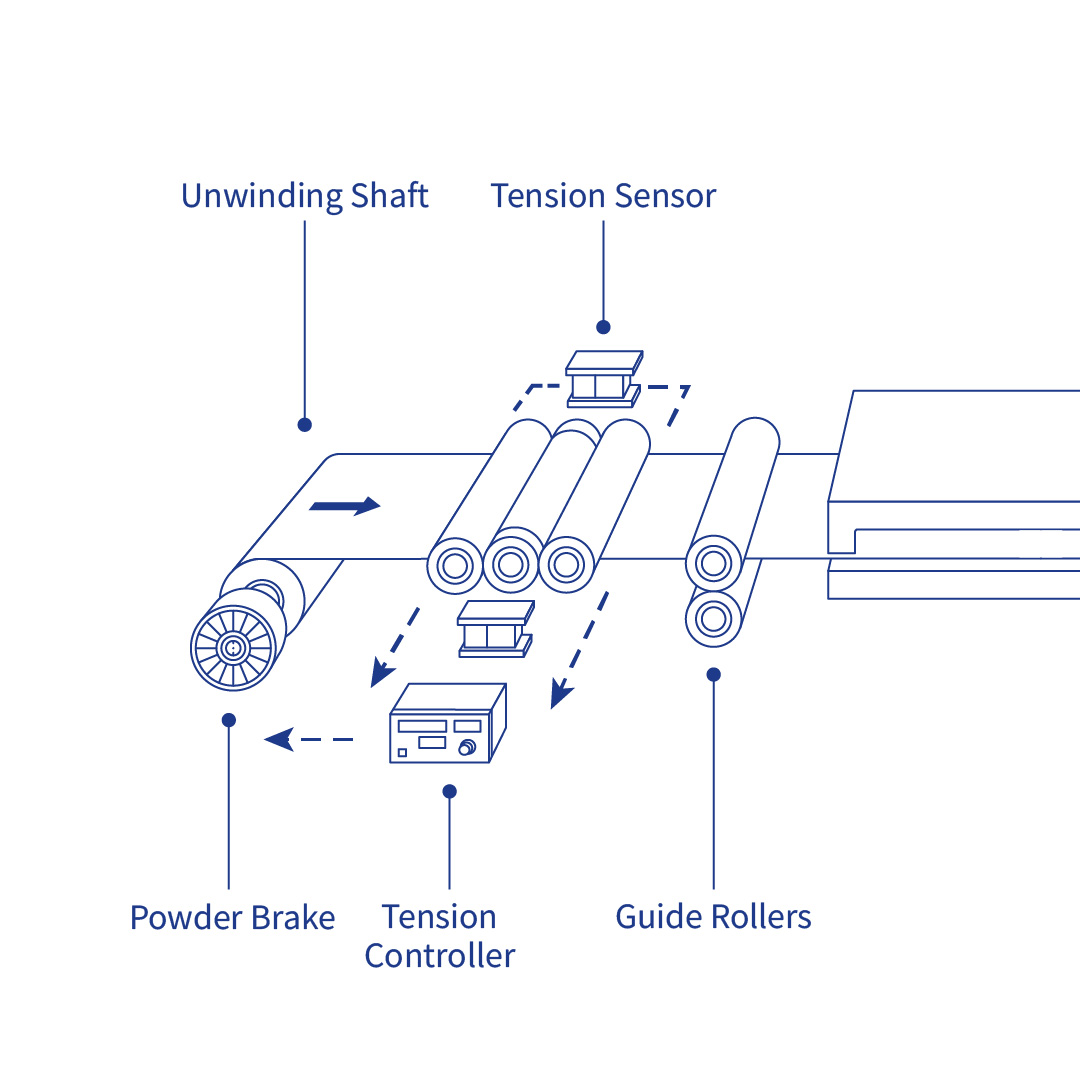

Closed-Loop Tension Control Architecture for Coating and Laminating Lines
System Components
Magnetic powder brake & clutch
Torque generation
Tension controller
Signal processing and compensation
Tension sensor
Feedback measurement
Unwinding shaft and guide rollers
Web transport and path stabilization
Control Logic
Measured tension is continuously monitored and compared with the target setpoint.
The controller calculates deviation between actual tension and desired value in real time.
Compensation is applied based on roll diameter variation.
Additional compensation is applied for line speed changes and process dynamics.
Output current is adjusted accordingly to regulate braking torque.
A closed-loop control system is formed to maintain stable and consistent tension.
Three-Level Tension Control Solutions for Coating & Laminating Machines
Coating and laminating machines require different levels of tension control depending on line speed, substrate sensitivity, coating uniformity targets, laminate alignment requirements, and multi-zone process complexity.
HELISTAR structures coating and laminating solutions into three practical levels so OEM buyers and factory managers can choose the right balance of system capability, integration depth, and investment value.
This system-level approach ensures that the brake, controller, sensing method, and machine dynamics work together to improve process stability and finished roll quality rather than relying on isolated component changes.
Entry-Level Tension Control for Standard Coating and Laminating Lines
Best for
Standard coating or laminating machines with relatively stable operating conditions, moderate speed, and straightforward web transport requirements. Also suitable for operations looking to reduce dependency on manual tension management and establish a more reliable process baseline in simpler coating or laminating applications.
Configuration
- Magnetic powder brake for stable unwinding torque
- Basic tension controller or manual adjustment interface
- Standard guide roller layout for web transport stability
- Suitable for simpler open-loop or semi-adjusted operation
Result
Provides a practical and cost-effective foundation for stable web feeding, improved basic coating or lamination consistency, and reduced tension-related defects in standard production conditions.
Closed-Loop Tension Control for Better Coating and Lamination Quality
Best for
Higher-speed coating and laminating lines that require stronger control of web stability, coating uniformity, laminate alignment, and waste reduction across changing roll diameter and speed conditions. Also suitable for operations where coating quality or laminate alignment varies between operators or product setups, and where reducing reliance on individual operator adjustment is a production consistency priority.
Configuration
- Magnetic powder brake with real-time torque adjustment
- Tension controller with closed-loop feedback capability
- Tension sensor for continuous web tension monitoring
- Optimized unwinding and guide roller arrangement for improved web stability
Result
Delivers more stable web transport, better coating repeatability, improved laminate alignment consistency, and lower startup and transition waste across a broader range of materials and operating conditions.
Integrated Tension Management for High-Performance Coating and Laminating Systems
Best for
High-speed or high-value coating and laminating systems that require tighter coordination between unwinding, process zones, multi-web handling, and rewinding behavior, along with stronger repeatability across different substrate structures. Suitable for operations managing multiple coating formulations or laminate combinations, where consistent process quality across different product setups and operators is a key production management requirement.
Configuration
- Magnetic powder brake with real-time torque adjustment
- Advanced tension controller integrated with line control logic
- Tension sensing strategy configured for higher process sensitivity
- System-level optimization across unwinding, coating, laminating, drying, and rewinding behavior
Result
Enables stronger process stability, more predictable coating and lamination quality, faster setup optimization, and higher production confidence in demanding converting environments where consistency and control are critical.
Typical Applications
HELISTAR coating and laminating solutions are suitable for converting processes where stable tension directly affects coating quality, laminate alignment, web transport stability, and finished roll performance.
Film Coating Lines
Maintain stable web tension to support more uniform coating application, smoother transport, and lower defect risk across sensitive film substrates.
Dry and Extrusion Laminating Systems
Improve layer handling and web stability through laminating zones where alignment and bonding consistency are essential.
Foil, Paper, and Multi-Layer Converting Lines
Support precision tension control in applications where different substrates must be processed together under stable and repeatable conditions.
Surface Treatment and Functional Coating Equipment
Provide smoother unwinding behavior and more stable process performance for high-value webs requiring stronger coating consistency.
What You Gain with HELISTAR Solutions
A properly integrated tension control solution improves more than unwinding behavior. It strengthens overall web stability, protects process quality, and creates measurable value for both machine builders and production teams.
More Stable Coating Quality
Stable web tension helps the substrate move more consistently through the coating section, supporting more uniform application and lower defect rates.
Better Lamination Alignment
Reduced tension fluctuation helps maintain layer positioning through laminating zones, improving alignment consistency and finished product quality.
Improved Web Stability Across Process Zones
Controlled tension behavior helps minimize wrinkling, wandering, and material deformation during coating, drying, laminating, and rewinding.
Lower Waste and Less Re-Setup Time After Changeovers
By improving process repeatability, the system helps reduce startup scrap, shorten adjustment time when switching substrates or coating formulations, and support stable operation at productive line speeds — without relying on individual operator knowledge to rebuild process conditions from scratch.
Reduced Operator Setup Dependency and More Consistent Cross-Product Quality
A system-level architecture stabilizes web behavior across different substrates, coating formulations, and laminate structures — reducing reliance on experienced personnel to manually tune the process for each product setup and making quality output more predictable and repeatable regardless of who is operating the line.
Application Example
Case
A flexible packaging converter operating a multi-layer laminating line needed to improve layer alignment stability and reduce wrinkle-related waste during speed changes and long production runs.
Challenge
The existing unwinding setup produced tension fluctuation as roll diameter changed, especially during acceleration and deceleration. This caused intermittent web distortion, lamination misalignment, and inconsistent finished roll quality, which increased scrap and limited stable line speed.
Solution
HELISTAR implemented a closed-loop tension control configuration using a magnetic powder brake, tension controller, and tension sensor, with control tuning matched to the material structure, line speed, and laminating process requirements. The system was configured to compensate for diameter variation and stabilize braking torque in real time.
Result
The line achieved more stable web transport, better lamination alignment, and lower wrinkle-related waste. Finished roll consistency improved, and production behavior became more repeatable across different product structures and operators — reducing the need for manual re-tuning when switching between substrate types or restarting after production stops.
Why HELISTAR for Coating & Laminating Machine Tension Control
HELISTAR combines component engineering expertise with practical understanding of web handling, coating, laminating, and rewinding processes.
Our solutions are built around stable torque output, reliable feedback control, and application-focused integration support that helps customers move from isolated component selection toward more effective system design.
With extensive experience in magnetic powder and electromagnetic clutch/brake technology, we support OEM buyers and factory managers with durable, production-oriented solutions that deliver clear operational value.
Years focused on tension
Global machinery partners
Inspection commitment
Application industries
FAQ
These questions reflect common concerns from OEM buyers and factory managers evaluating tension control solutions for coating and laminating machines. The answers focus on system-level value, implementation priorities, and practical production performance.
Because coating quality and laminate stability depend on how the brake, controller, sensor, unwinding mechanics, process zones, and rewind behavior work together. A single component upgrade may not solve wrinkling, alignment drift, or inconsistent roll quality. A system-level approach provides stronger and more repeatable production results.
It provides smooth and controllable braking torque for unwinding, helping maintain more stable web tension as roll diameter changes. For OEM builders, this improves machine platform reliability. For factory managers, it supports better process consistency, lower waste, and more stable finished roll quality.
Closed-loop control is recommended when the line runs at higher speed, processes sensitive substrates, or requires tighter control of coating quality, laminate alignment, or multi-zone stability. Sensor feedback allows the system to react in real time and maintain more stable web behavior throughout production.
Yes. The same system architecture can be adapted for coating lines, dry laminators, extrusion laminators, and other web converting equipment. Final configuration depends on substrate properties, web width, line speed, torque demand, and required process accuracy.
A properly matched tension control system reduces startup scrap, improves process repeatability, and makes the line less sensitive to speed changes and roll diameter variation. This supports better uptime, more stable product quality, and easier production management across multiple jobs and material structures.
